U Shaped Low Profile Scissor Lift Table Cart 1t Pallet Hydraulic Stationary 1450x1140mm
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | Buytool |
| Certification: | CE,SGS,ISO9001 |
| Model Number: | HU1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1069~1699 usd/unit |
| Packaging Details: | 1550x1200x380mm |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000 units per month |
|
Detail Information |
|||
| Name: | Low Profile Lift Tables | Material: | Alloy Steel Q345B |
|---|---|---|---|
| Table Dimensions: | 1450x1140mm | Lifting Height: | 775mm |
| Min. Height: | 85mm | Max. Height: | 860mm |
| Motor Power: | 1.1kw | Capacity: | 1000kg |
| Color: | Yellow, Red, Blue, White, Green, Black, Etc. | Application: | Warehouse, Workshop, Building Material Shops |
| Warranty Of Core Components: | One Year | HS Code: | 8428909090 |
| High Light: | U Shaped Low Profile Scissor Lift Table 1450mm,Low Profile Scissor Lift Table Cart 1t 1450x1140mm,u shaped lift table 1450x1140mm |
||
Product Description

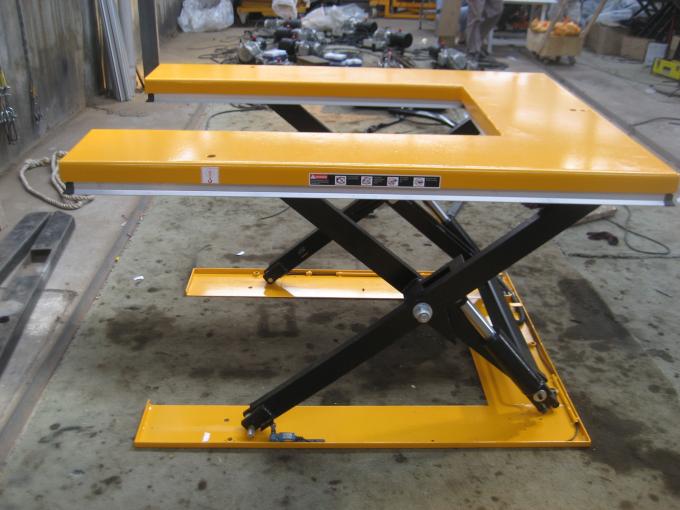

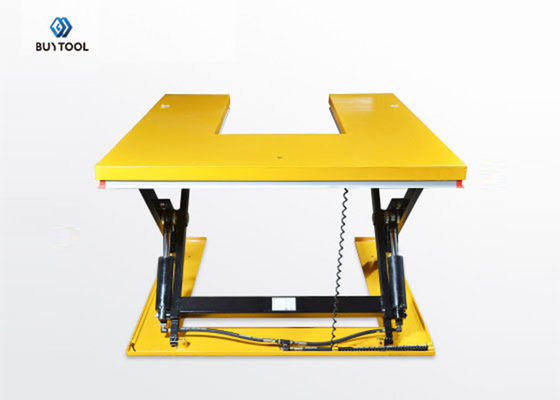

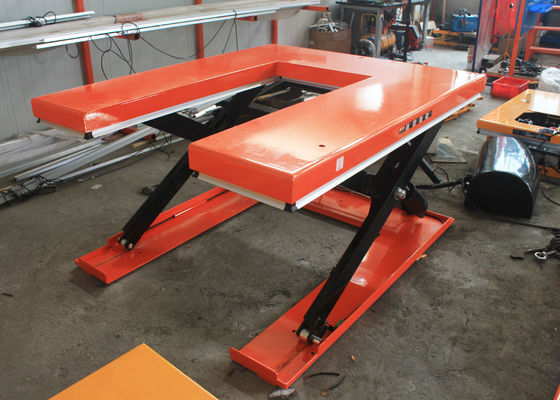

1t U-Shaped Pallet Hydraulic Stationary Low Profile Scissor Lift Table

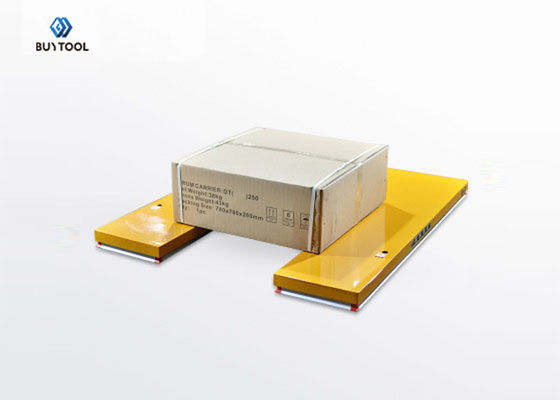

Specially for handling pallets, no need for a pit or load ramps.

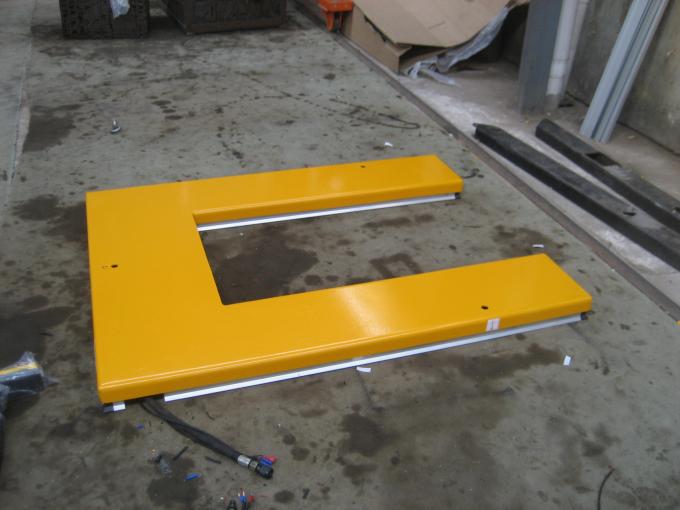

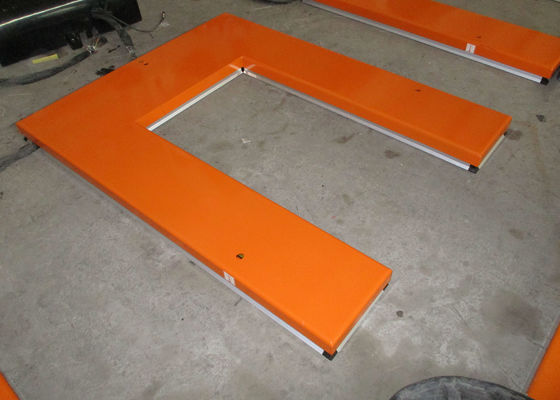

"U" Shaped Top Platform
They are manufactured to all European safety standards including EN1570: 1990.
Remote power pack with pedestal and controls, pretected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting eyes to facilitate handling and installation of the lift table.
Mechanical safety chocks for maintenance.
Oiless bushings on pivot points.
Quick assembly joint for oil hose.
| Model | HU600 | HU1000 | HU1500 | |
| Capacity | (Kg) | 600 | 1000 | 1500 |
| Platform Sizes (LxW) | (mm) | 1450×985 | 1450×1140 | 1600×1180 |
| Size A | (mm) | 200 | 280 | 300 |
| Size B | (mm) | 1080 | 1080 | 1194 |
| Size C | (mm) | 585 | 580 | 580 |
| Min./Max.Height | (mm) | 85/860 | 85/860 | 105/860 |
| Lift Time | (s) | 25-35 | 25-35 | 30-40 |
| Power Unit | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
| Net Weight | (Kg) | 207 | 280 | 380 |
FAQ:
What the mainly currency Buytool can accept?
Prices are quoted mostly in US dollars or EURO. All prices are subject to change without notice.
Can you introduce the shipment of Buytool?
Shipping charges for all Buytool orders are calculated based on the shipping method of the order, the weight or volume of the items on the order, and the destination.We normally can do FOB/CIF/DAP/DDP/DDU terms and also we can send the goods via express or AIR according customer’s requirements. All wooden packages can be fumigated at our side and we will provide the official certification if your Customers need.
CIF TERM: Buytool will arrange the shipping company and will be in charge to assure the goods shipped to destination port. You will not need to pay the shipping company upon delivery to destination port.
FOB TERM: If you would like your preferred shipping company to pick up your order, simply let us know when you place your order. You will be responsible for paying your shipping company sea freight charges besides your order. Buytool only in charge of sending the goods to loading port as agree on order.
What about the delivery time?
Most of items can be shipped out within 30days, some items need a little bit longer time to prepare, we will explain these to you if this situation happens.
What’s the payment term of Buytool?
Buytool accepts L/C at sight or T/T, anyway we prefer T/T mainly because it will save money for both parties, Your first order with Buytool must be prepaid with T/T, after first time, we accept the payment as we ship out goods, then fax the copy of documents to you, you balance the rest payment ,and we will express the original documents to you after we get the money. Any other info please contact us for detail.
