750kg Self Leveling Pallet Table Low Profile Lift Cart 25mm Closed Height
Product Details:
| Place of Origin: | China |
| Brand Name: | Buytool |
| Certification: | CE,SGS,ISO9001 |
| Model Number: | HX750 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | USD1700-1900/UNIT |
| Packaging Details: | 7units/pallet |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, L/C, |
| Supply Ability: | 1000 UNITS/PER MONTH |
|
Detail Information |
|||
| Name: | Low Profile Lift Tables | Max. Height: | 800mm |
|---|---|---|---|
| Min. Height: | 25mm | Table Size: | 1270x1100mm |
| Material: | Q345B | Capacity: | 750kg |
| Color: | Yellow, Red, Blue, White, Green, Black, Etc. | Application: | Warehouse, Material Handling |
| Packing Dimensions: | 1300x1600x500mm | HS Code: | 8428909090 |
| High Light: | 750kg self leveling pallet table low profile,low profile lift cart 25mm Closed,750kg pallet truck lift table 25mm Closed |
||
Product Description

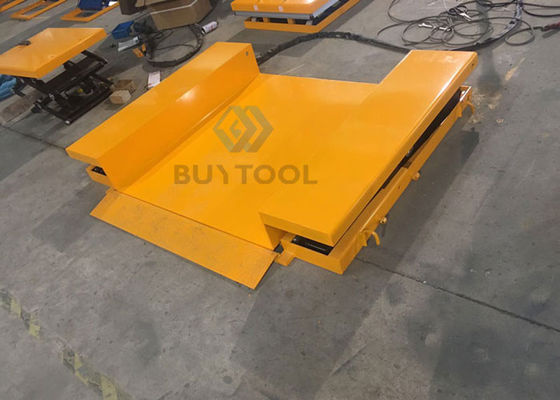

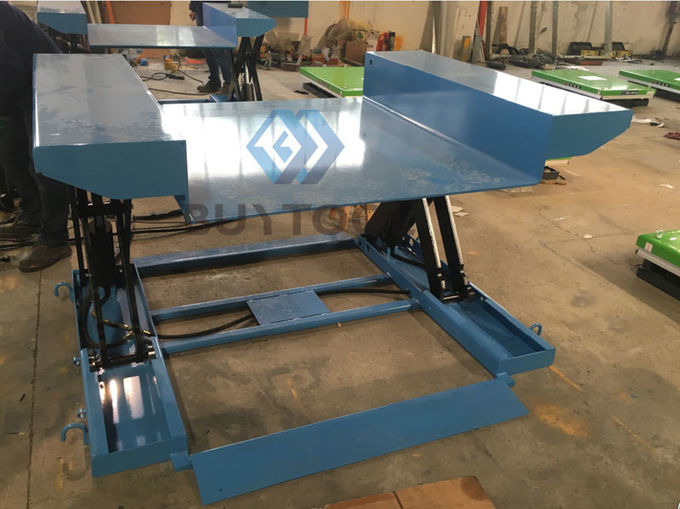

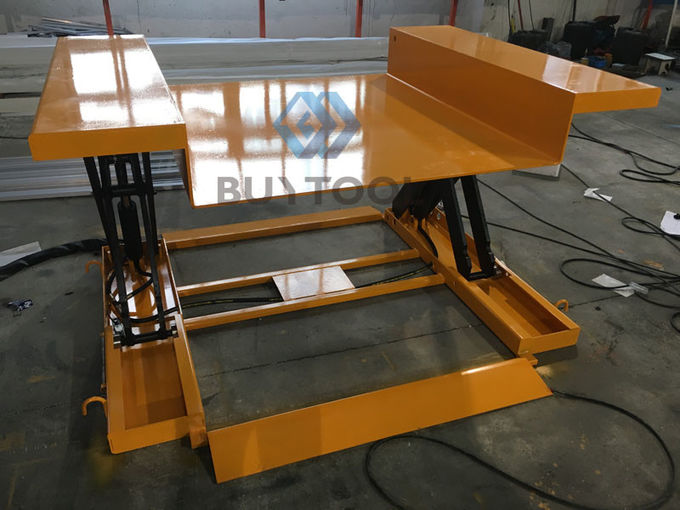

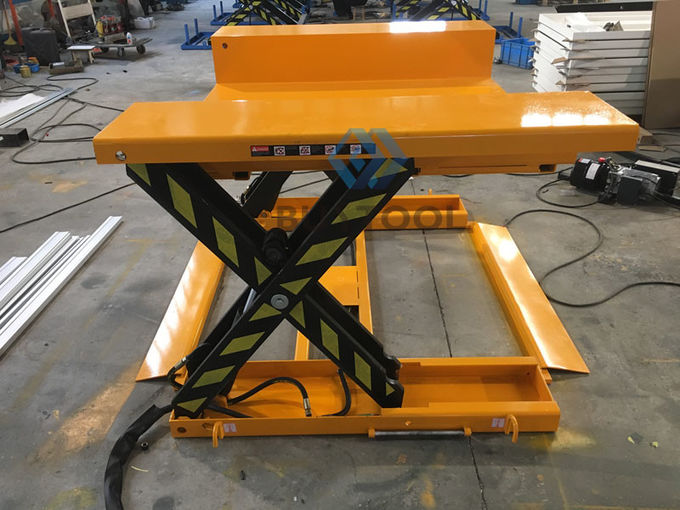

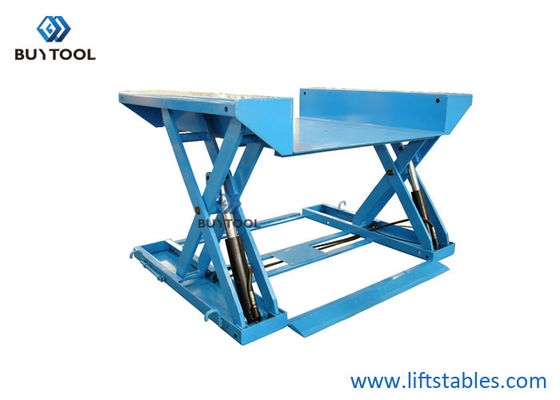

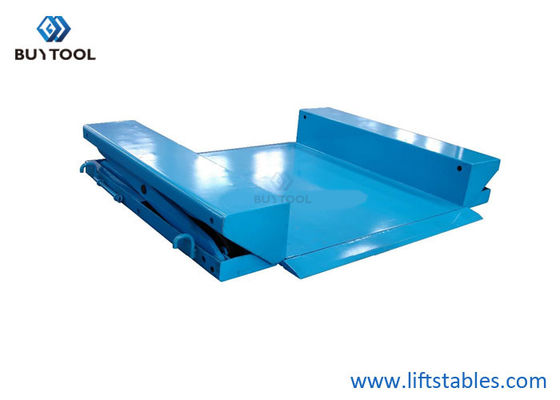

Hydraulic Low Profile Lift Table 25mm Closed Height for Pallet Load
Safety Features:
- Closed height only 25mm, no ramp needed for pallet.
- Mechanical safety chocks for maintenance.
- These tables achieve a super low closed height, eliminating the need for a pit installation.
- They are manufactured to all European safety standards including EN1570: 1999.

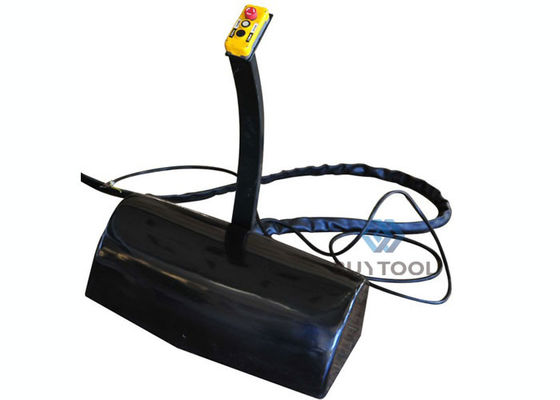

- Remote power pack with pedestal and controls, protected to IP54.
| Model | HX500 | HX750 | HX1000 | HX1500 |
| Capacity (kg) | 500 | 750 | 1000 | 1500 |
| Max. height H(mm) | 800 | 800 | 800 | 800 |
| Min. height h(mm) | 25 | 25 | 35 | 35 |
| Platform L×W(mm) | 1270x1100 | 1270x1100 | 1270x1100 | 1270x1100 |
| Lifting Time (second) | 25~35 | 25~35 | 25~35 | 25~35 |
| Power Pack (KW) | 380V/50Hz, AC0.75KW | 380V/50Hz, AC0.75KW | 380V/50Hz, AC0.75KW | 380V/50Hz, AC1.5KW |
| Net Weight (kg) | 207 | 250 | 280 | 380 |
FAQ:
Q: What about the quality of the products?
A: Our lift tables are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of lift tables before shipment;
5. If needed, inspection by buyer.
Q: Do you accept customized design? Do you offer OEM & ODM service?
A: Yes,of course! We have over 10 years' experience in customized design product,expecially lift tables.
Q: What information should I provide for a customized order?
A: The more information you provide, the accurate solution we can prepare for you.Such as:
1.control by manual or electric
2.stationary or mobile lift tables
3.power source/voltage demand
4.load capacity
5.lifting heigh(min.height and max height)
6.table size
Q: What is your MOQ?
A: One unit.The more the better.The price is negotiable for large quantity.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
