1500kg Low Profile Lift Tables Hydraulic Mechanical Lift Table With Dock Leveler Device
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | Buytool |
| Certification: | CE,SGS,ISO9001 |
| Model Number: | HU1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1069~1699 usd/unit |
| Packaging Details: | 1700x1250x400mm |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000 units per month |
|
Detail Information |
|||
| Name: | Low Profile Lift Tables | Material: | Alloy Steel Q345B |
|---|---|---|---|
| Table Dimensions: | 1600x1180mm | Lifting Height: | 755mm |
| Min. Height: | 105mm | Max. Height: | 860mm |
| Motor Power: | 2.2kw | Capacity: | 1000kg |
| Color: | Yellow, Red, Blue, White, Green, Black, Etc. | Application: | Warehouse, Workshop, Building Material Shops |
| Warranty Of Core Components: | One Year | HS Code: | 8428909090 |
| High Light: | Mechanical lift table with dock leveler device,loading dock hydraulic lift table,mechanical table lift |
||
Product Description

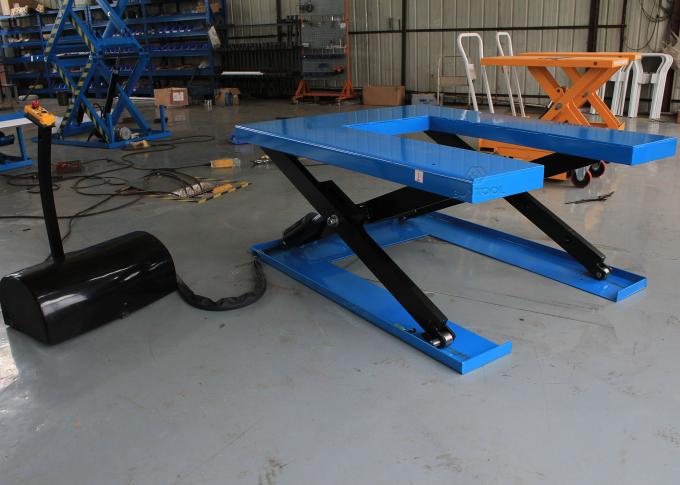

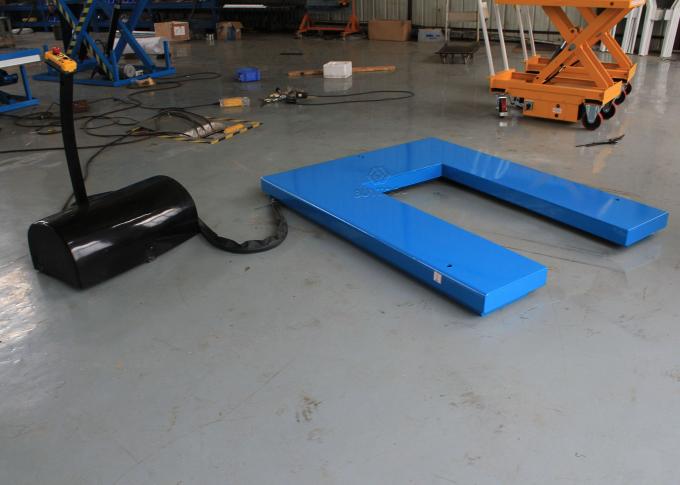

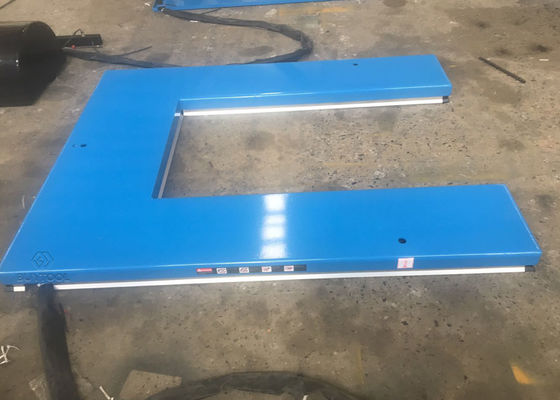

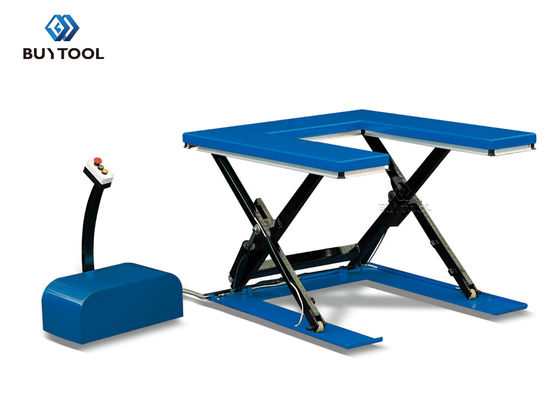

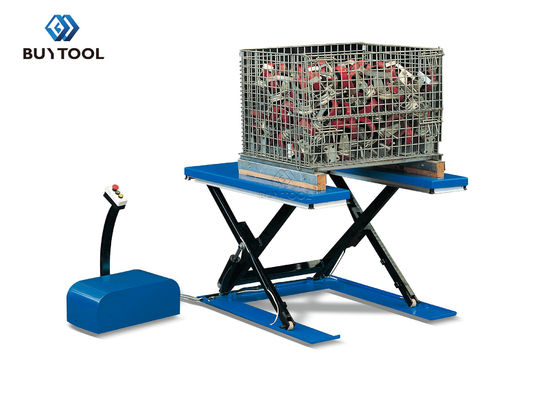

Mechanical Dock Leveler U-Shape Scissors Electric Hydraulic Lift Table 1500kg

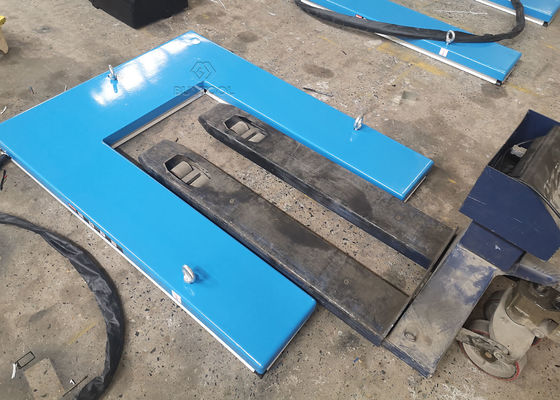

These tables achieve a low closed height,Pallet truck can be can be directly into the middle of the table, so as to upper and lower the tray.
-
With CE certification,meet EN 1570 ANSI/ASME safety standards.
-
Convenient electric and hydraulic system and scissor design for easy lifting,lowering.
-
AC 110/220/380/460V,50/60Hz power supply,low-tention (24V) control box.
-
Applicable to various industries,expecially in warehousing,logistics,manufacturing industies.
-
Custom design and specs available.

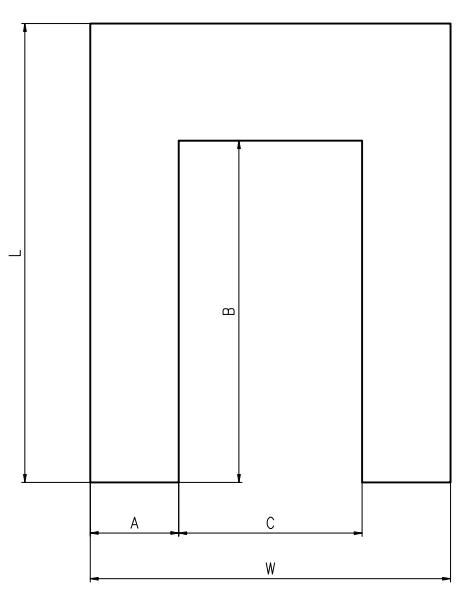

| Model | HU600 | HU1000 | HU1500 | |
| Capacity | (Kg) | 600 | 1000 | 1500 |
| Platform Sizes (LxW) | (mm) | 1450×985 | 1450×1140 | 1600×1180 |
| Size A | (mm) | 200 | 280 | 300 |
| Size B | (mm) | 1080 | 1080 | 1194 |
| Size C | (mm) | 585 | 580 | 580 |
| Min./Max.Height | (mm) | 85/860 | 85/860 | 105/860 |
| Lift Time | (s) | 25-35 | 25-35 | 30-40 |
| Power Unit | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
| Net Weight | (Kg) | 207 | 280 | 380 |
FAQ:
What the mainly currency Buytool can accept?
Prices are quoted mostly in US dollars or EURO. All prices are subject to change without notice.
Can you introduce the shipment of Buytool?
Shipping charges for all Buytool orders are calculated based on the shipping method of the order, the weight or volume of the items on the order, and the destination.We normally can do FOB/CIF/DAP/DDP/DDU terms and also we can send the goods via express or AIR according customer’s requirements. All wooden packages can be fumigated at our side and we will provide the official certification if your Customers need.
CIF TERM: Buytool will arrange the shipping company and will be in charge to assure the goods shipped to destination port. You will not need to pay the shipping company upon delivery to destination port.
FOB TERM: If you would like your preferred shipping company to pick up your order, simply let us know when you place your order. You will be responsible for paying your shipping company sea freight charges besides your order. Buytool only in charge of sending the goods to loading port as agree on order.
What about the delivery time?
Most of items can be shipped out within 30days, some items need a little bit longer time to prepare, we will explain these to you if this situation happens.
What’s the payment term of Buytool?
Buytool accepts L/C at sight or T/T, anyway we prefer T/T mainly because it will save money for both parties, Your first order with Buytool must be prepaid with T/T, after first time, we accept the payment as we ship out goods, then fax the copy of documents to you, you balance the rest payment ,and we will express the original documents to you after we get the money. Any other info please contact us for detail.
