Powered Motorized Rotating Pallet Lift Table 100kg Rotary Round Stage Platform 360 Degree
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | Buytool |
| Certification: | CE,SGS,ISO9001 |
| Model Number: | HW1001-XZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1000~1583usd/unit |
| Packaging Details: | 1400x920x445mm |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000 units per month |
|
Detail Information |
|||
| Name: | Stationary Lift Tables | Material: | Alloy Steel Q345B |
|---|---|---|---|
| Capacity: | 2200lbs | Turntable Size: | 32" Dia. |
| Table Dimensions: | 51" X 32" Inch | Lifting Height: | 31.2" Inch |
| Min. Height: | 10.5" Inch | Max. Height: | 41.5" Inch |
| Motor Power: | 1.1kw | Input Phase: | Three Phase |
| Input Voltage: | 220/380/460V AC | Input Frequency: | 50/60 Hz |
| Color: | Yellow, Red, Blue, White, Green, Black, Etc. | Application: | Warehouse, Workshop, Building Material Shops |
| Warranty Of Core Components: | One Year | HS Code: | 8428909090 |
| High Light: | powered rotatable electric lift table,scissor lift rotary table,electric rotating lift table Buytool |
||
Product Description

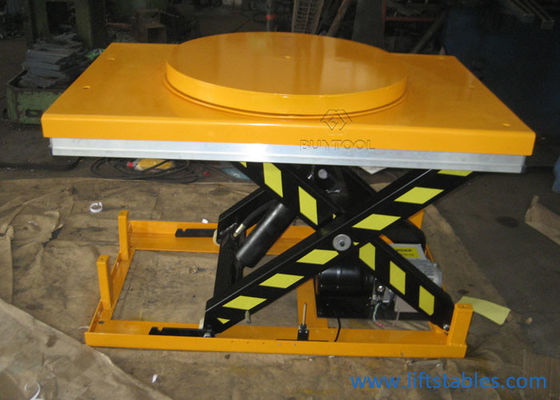

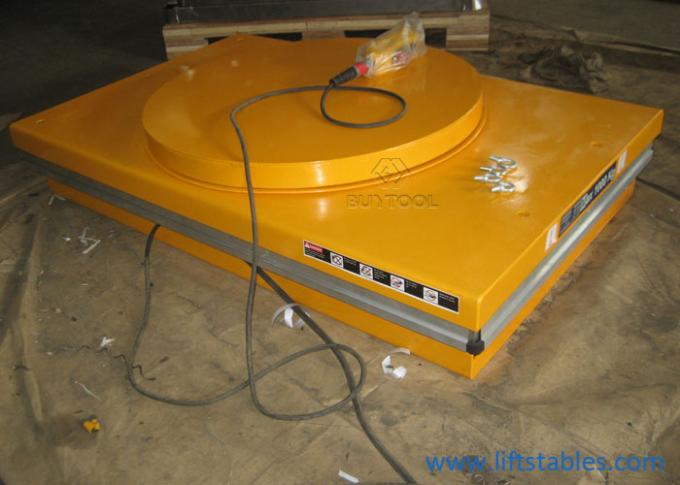

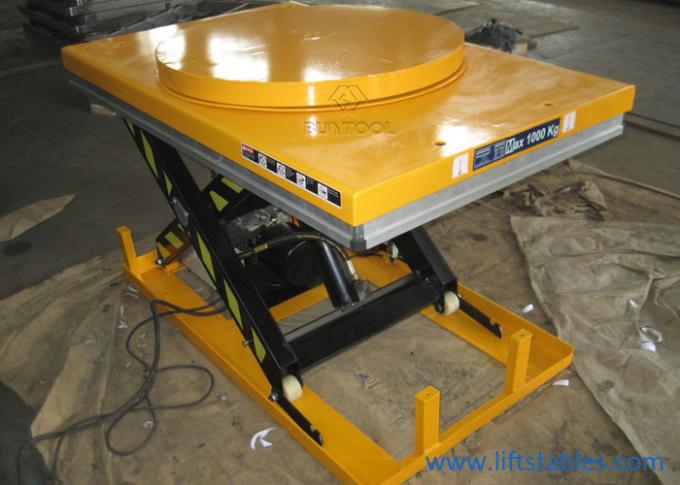

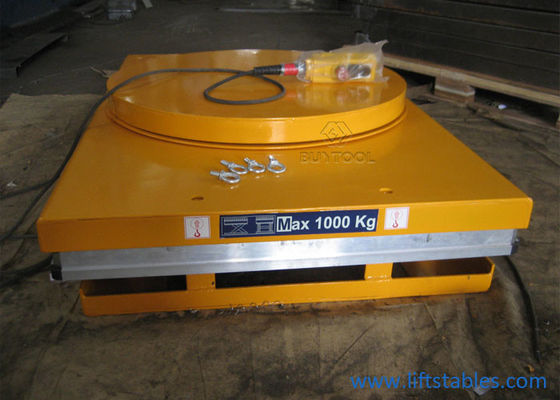

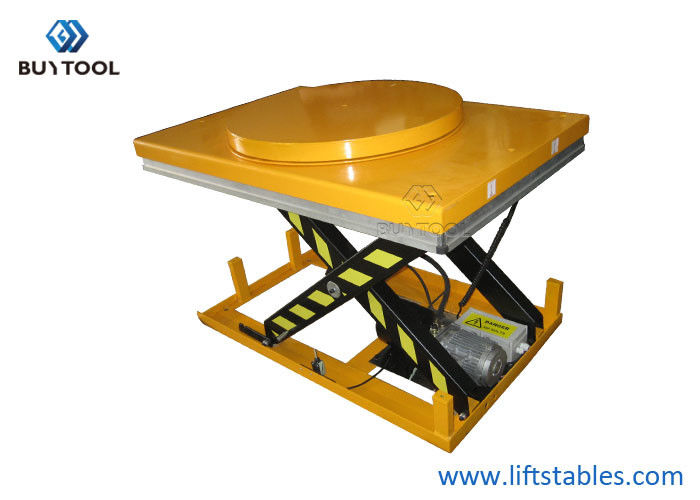

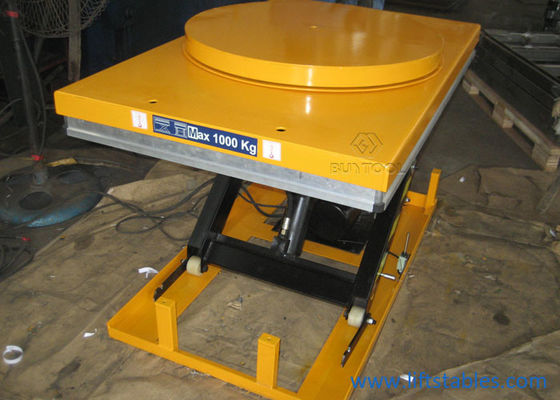

Motorized Scissor Electric Lift Tables 360 Degree Rotary Round Stage Platform
Technical Specifications:
Capacity : 2,200 Pounds
Raised Height : 41-1/2″ (Over Deck)
Lowered Height : 10-1/2″
Vertical Travel : 30-1/5″
Power:Powered by a 120v AC electric over hydraulic power unit – base mounted.
Controls:Push Button Coil Corded Pendant – Lift/Lower
Paint:Safety Yellow
Standard Features
360 Degree rotating top with heavy duty cam rollers and exclusive Roto-Bearings.
Cylinders with internal stops, hard chrome plated, polished shafting hydraulic cylinder piston rods
Surfaces degreased, descaled and finished with safety yellow enamel
Integral gear pump with check valve, relief valve, solenoid valve
Smooth steel top with yellow and black safety strips
Control box NEMA constant pressure, magnetic backed
S.A.E. hoses and fittings

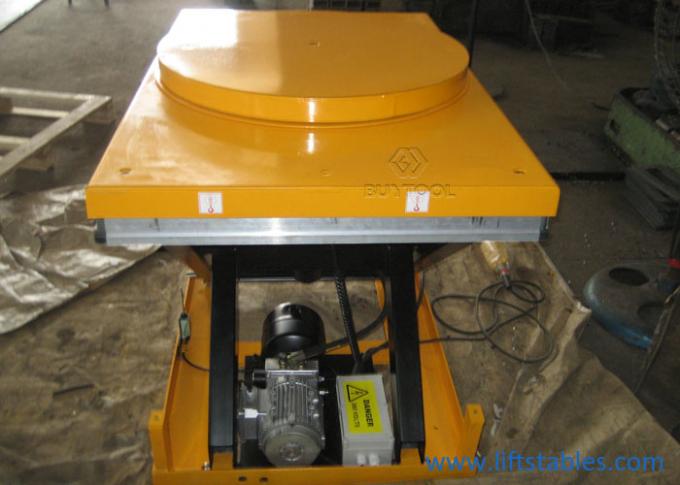

Internally mounted motor
Includes hydraulic oil and filter
| Base | Vertical | Capacity | Height | Turntable | Platform | Up | Motor | Voltage | |
| Model | Travel | Lower | Upper | Size | Size | Speed | |||
| HW1001-XZ | 31.2" | 2,200 lbs | 10.5" | 41.5" | 32" Dia. | 51" x 32" | 20~25 sec | 1.1kw | 115/230/380/460 |
| HW1002-XZ | 31.2" | 2,200 lbs | 10.5" | 41.5" | 39.3" Dia. | 63" x 39.3" | 20~25 sec | 1.1kw | 115/230/380/460 |
| HW1003-XZ | 41.5" | 2,200 lbs | 12" | 53.5" | 33.4" Dia. | 30" x 45" | 30~35 sec | 1.1kw | 115/230/380/460 |
| HW1004-XZ | 41.5" | 2,200 lbs | 12" | 53.5" | 39.3" Dia. | 63" x 39.3" | 30~35 sec | 1.1kw | 115/230/380/460 |
| HW1005-XZ | 41.5" | 2,200 lbs | 12" | 53.5" | 33.4" Dia. | 30" x 45" | 30~35 sec | 1.1kw | 115/230/380/460 |
| HW1006-XZ | 41.5" | 2,200 lbs | 12" | 53.5" | 39.3" Dia. | 63" x 39.3" | 30~35 sec | 1.1kw | 115/230/380/460 |
| HW1007-XZ | 41.5" | 2,200 lbs | 12" | 53.5" | 59" Dia. | 30" x 45" | 30~40 sec | 1.1kw | 115/230/380/460 |
| HW1008-XZ | 41.5" | 2,200 lbs | 12" | 53.5" | 66.5" Dia. | 63" x 39.3" | 30~40 sec | 1.1kw | 115/230/380/460 |
Wuxi Buytool Industrial Equipment Co., Ltd. is a professional logistic and industrialequipments manufacturer in China for more than10 years.
The product range covers manual andelectric pallet trucks, stackers, mobile and sta-tionary lift tables, weighing trucks and all kinds of trolleys.
Our company owned a complete line of advancedequipments, such as CMM machines, weldingRobots, CNC cutting machine,
Auto Power coat-ing line, Hydraulic Press and Testing machineetc.
We have professional technical team in de-signing and producing which can meet the differ-ent requirements from customers.
