Low Profile Hydraulic Lift Tables With Ramp Hand Pallet Truck 600kg 1450x1140mm
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | Buytool |
| Certification: | CE,SGS,ISO9001 |
| Model Number: | HY1001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1100~1399 usd/unit |
| Packaging Details: | 1550x1200x550mm |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000 units per month |
|
Detail Information |
|||
| Name: | Low Profile Lift Tables | Material: | Alloy Steel Q345B |
|---|---|---|---|
| Table Dimensions: | 1450x1140mm | Lifting Height: | 775mm |
| Min. Height: | 85mm | Max. Height: | 860mm |
| Motor Power: | 1.1kw | Capacity: | 1000kg |
| Color: | Yellow, Red, Blue, White, Green, Black, Etc. | Application: | Warehouse, Workshop, Building Material Shops |
| Warranty Of Core Components: | One Year | HS Code: | 8428909090 |
| High Light: | Low Profile Hydraulic Lift Tables With Ramp 1450x1140mm,Low Profile Hydraulic Lift Tables 1450x1140mm,low profile lift cart 1450x1140mm |
||
Product Description

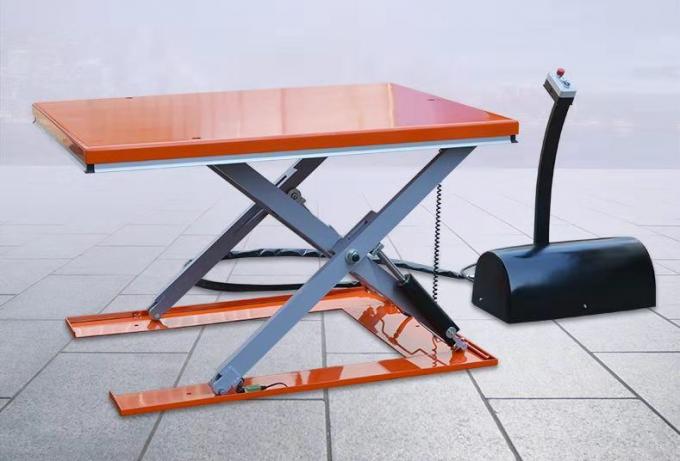

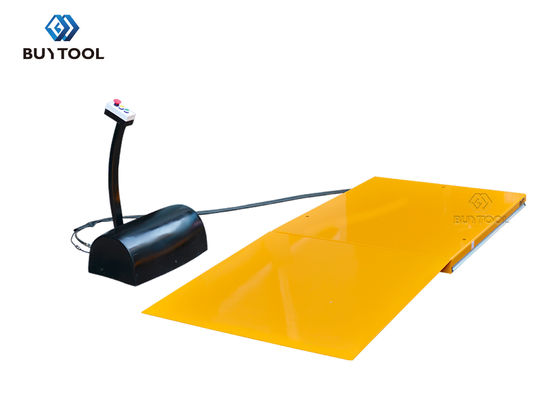

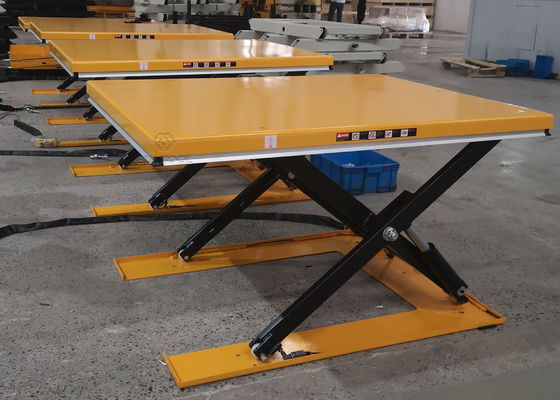

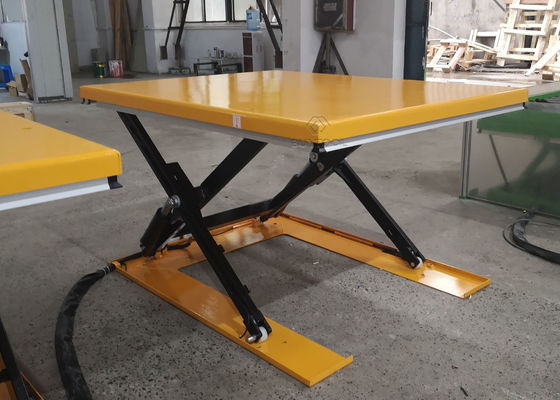

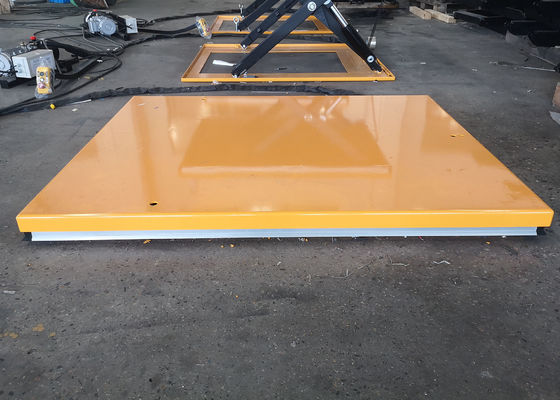

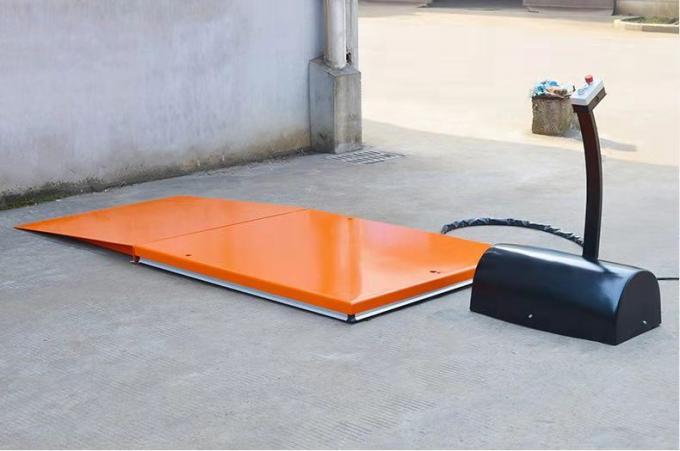

600kg Hand Pallet Truck U Shape Stationary Electric Hydraulic Low Profile Lift Tables
Specially for handling pallets, no need for a pit, equipped a load ramp,
They are manufactured to all European safety standards including EN1570: 1990.
Remote power pack with pedestal and controls, pretected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting eyes to facilitate handling and installation of the lift table.
Mechanical safety chocks for maintenance.
Oiless bushings on pivot points.
Quick assembly joint for oil hose.
| Model | Capacity | Min. /Max. Height | Platform Sizes (LxW) | Base Sizes (LxW) | Lift Time | Power Pack | Net Weight |
| (Kg) | (mm) | (mm) | (mm) | (s) | (Kg) | ||
| HY1001 | 1000 | 85/860 | 1450×1140 | 1325×1074 | 25 | 380V/50Hz | 357 |
| HY1002 | 1000 | 85/860 | 1600×1140 | 1325×1074 | 25 | 380V/50Hz | 364 |
| HY1003 | 1000 | 85/860 | 1450×800 | 1325×734 | 25 | 380V/50Hz | 326 |
| HY1004 | 1000 | 85/860 | 1600×800 | 1325×734 | 25 | 380V/50Hz | 332 |
| HY1005 | 1500 | 85/860 | 1600×1000 | 1325×734 | 25 | 380V/50Hz | 352 |
| HY1501 | 1500 | 105/870 | 1600×800 | 1325×734 | 25 | 380V/50Hz | 302 |
| HY1502 | 1500 | 105/870 | 1600×1000 | 1325×734 | 25 | 380V/50Hz | 401 |
| HY1503 | 1500 | 105/870 | 1600×1200 | 1325×734 | 25 | 380V/50Hz | 415 |
| HY2001 | 2000 | 105/870 | 1600×1200 | 1427×1114 | 25 | 380V/50Hz | 419 |
| HY2002 | 2000 | 105/870 | 1600×1000 | 1427×734 | 25 | 380V/50Hz | 405 |
